Surface Engineering Solutions
Plasma Coating Services for Wear, Heat and Corrosion Protection
APT Coating provides plasma spray coating services for ceramic, metallic and functional coatings used on industrial components exposed to wear, high temperature, corrosion, oxidation and surface damage.
From coating selection and sample development to plasma spray processing, inspection and engineering support.
Solution Paths
Find the Right Plasma Coating Solution
Start with the surface problem, then match the coating material, process route, finishing method and inspection plan.
For Wear Resistance
Explore plasma coating for shafts, rollers, sleeves, bearing seats and industrial wear parts.
View Wear SolutionFor Thermal Barrier Protection
Review ceramic and zirconia-based coatings for high-temperature components and thermal cycling.
View Thermal Barrier CoatingFor Electrical Insulation
Find ceramic plasma coating options for dielectric surface protection and controlled insulation.
View Insulation CoatingFor Component Repair
Send worn part details for surface restoration, coating build-up and functional refurbishment.
Discuss Repair CoatingProcess Overview

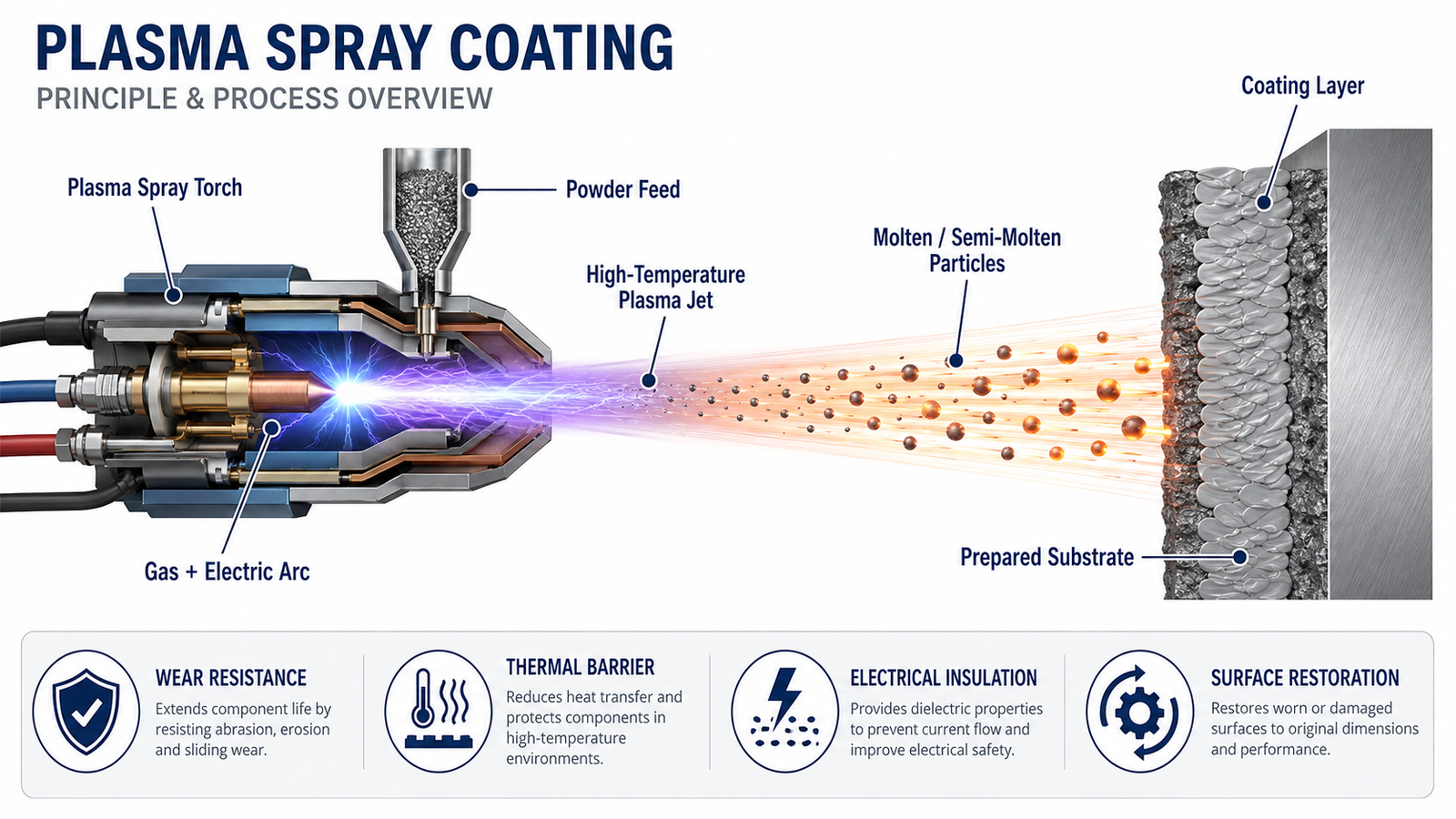

What Is Plasma Spray Coating?
Plasma spray coating is a thermal spray process that uses a high-temperature plasma jet to melt powder materials. Molten or semi-molten particles are projected onto a prepared substrate surface, where they solidify and build a protective or functional coating system.
Plasma spray is especially suitable for ceramic coatings, oxide coatings, thermal barrier coatings and selected high-melting-point materials where surface performance is more important than changing the base component.
Typical purposes include plasma coating for wear resistance, thermal barrier coating performance, electrical insulation coating, oxidation resistance, surface restoration and application-specific surface engineering.
Service Capabilities
APT Coating Plasma Coating Service Capabilities
APT Coating supports plasma coating projects with 6 material science engineers specializing in coating R&D and application, 6 spray booths covering Plasma, HVOF, Arc and D-Gun Spray, plasma booths equipped with 7700 and 9MC systems, and 15 trained technical operators for coating processing and production support.
Plasma Coating Processing
Industrial plasma spray processing for new parts, repairs, prototypes and selected production projects.
Ceramic Coating Application
Apply ceramic plasma coatings for wear resistance, insulation, thermal protection, oxidation resistance and special surface functions.
Custom Coating Design
Select material, thickness, surface finish and process route based on substrate, working condition, wear mode and environment.
Sample Development
Support new coating applications, sample coating, prototype evaluation and performance validation.
Inspection & Evaluation
Provide thickness, hardness, bond quality, porosity, microstructure and dimensional inspection support.
Technical Support & Training
Training and process consultation for coating engineers and production teams.

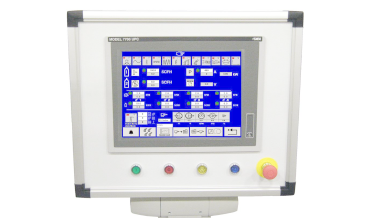

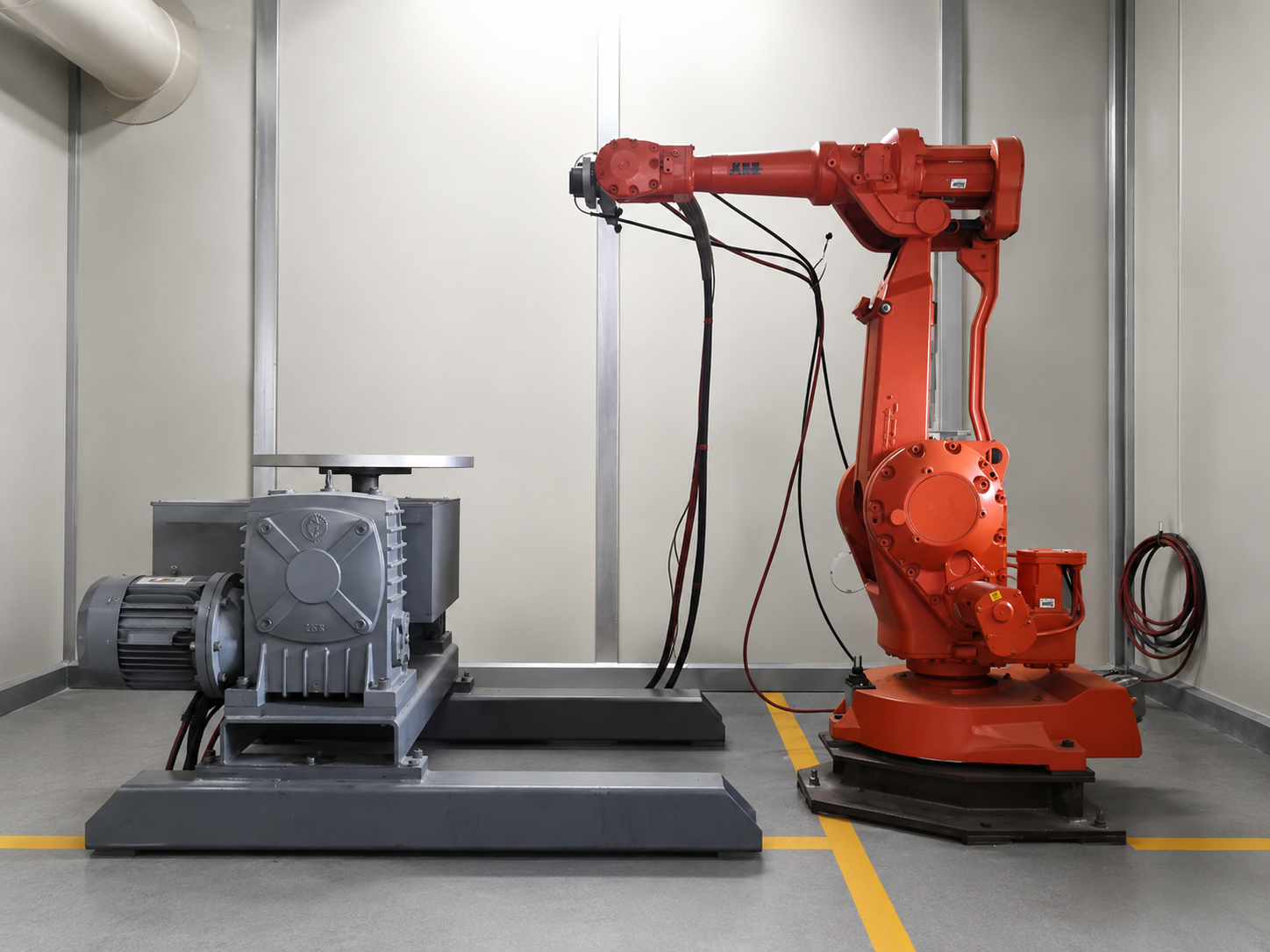

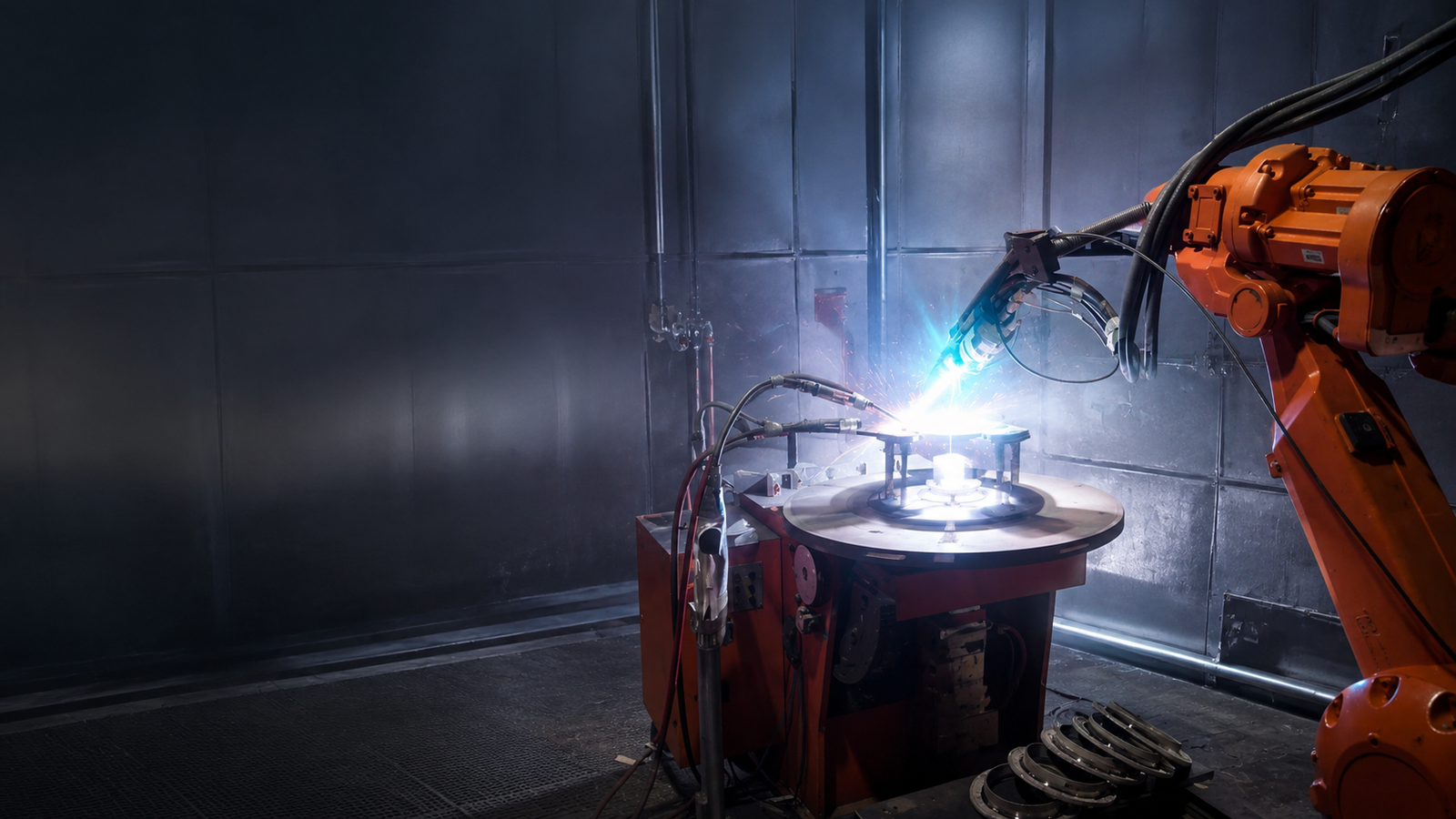

Praxair 7700 Spray Booth

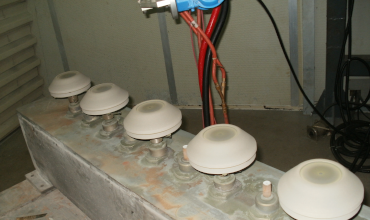

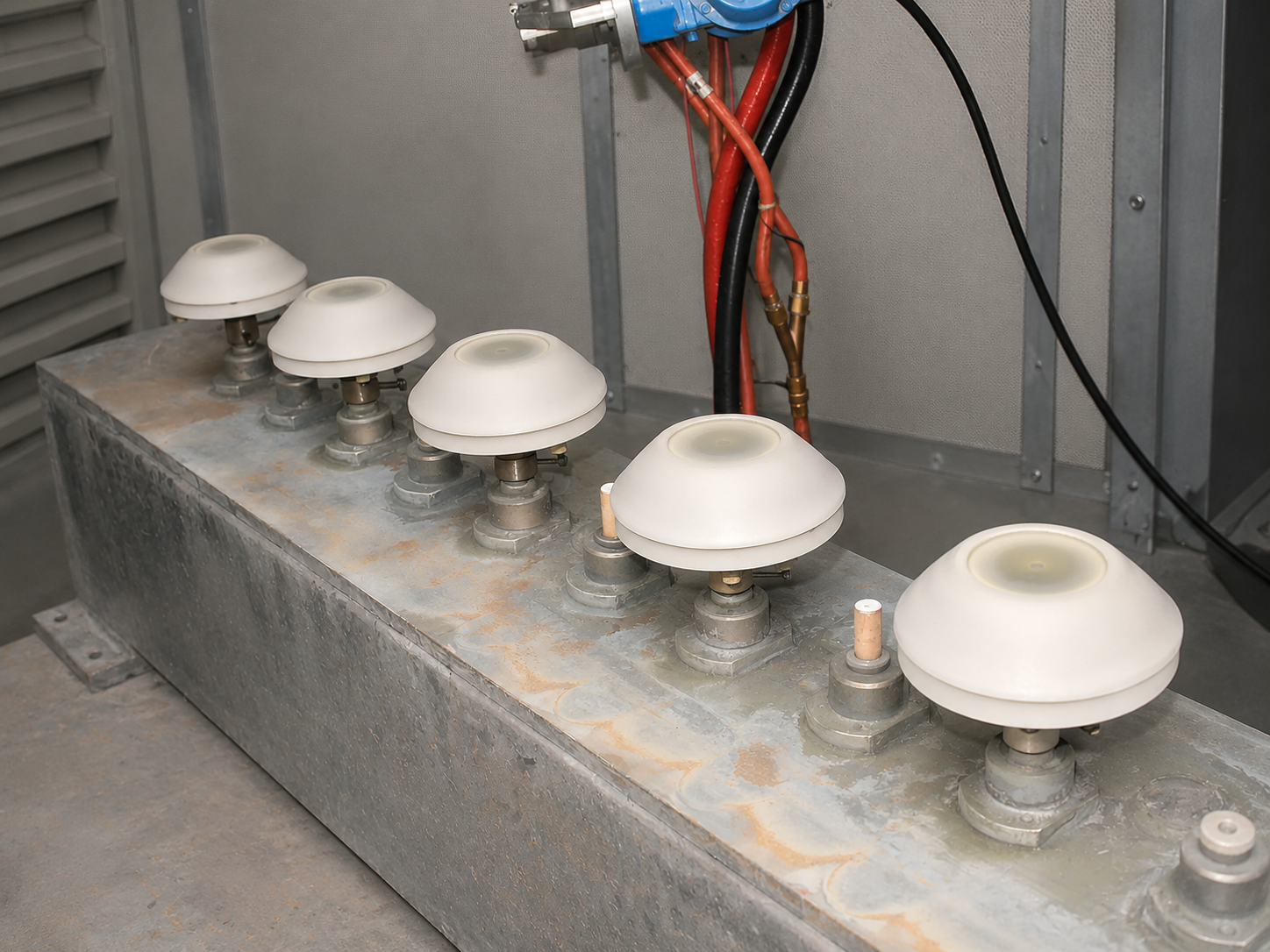

TBC Coating by Plasma

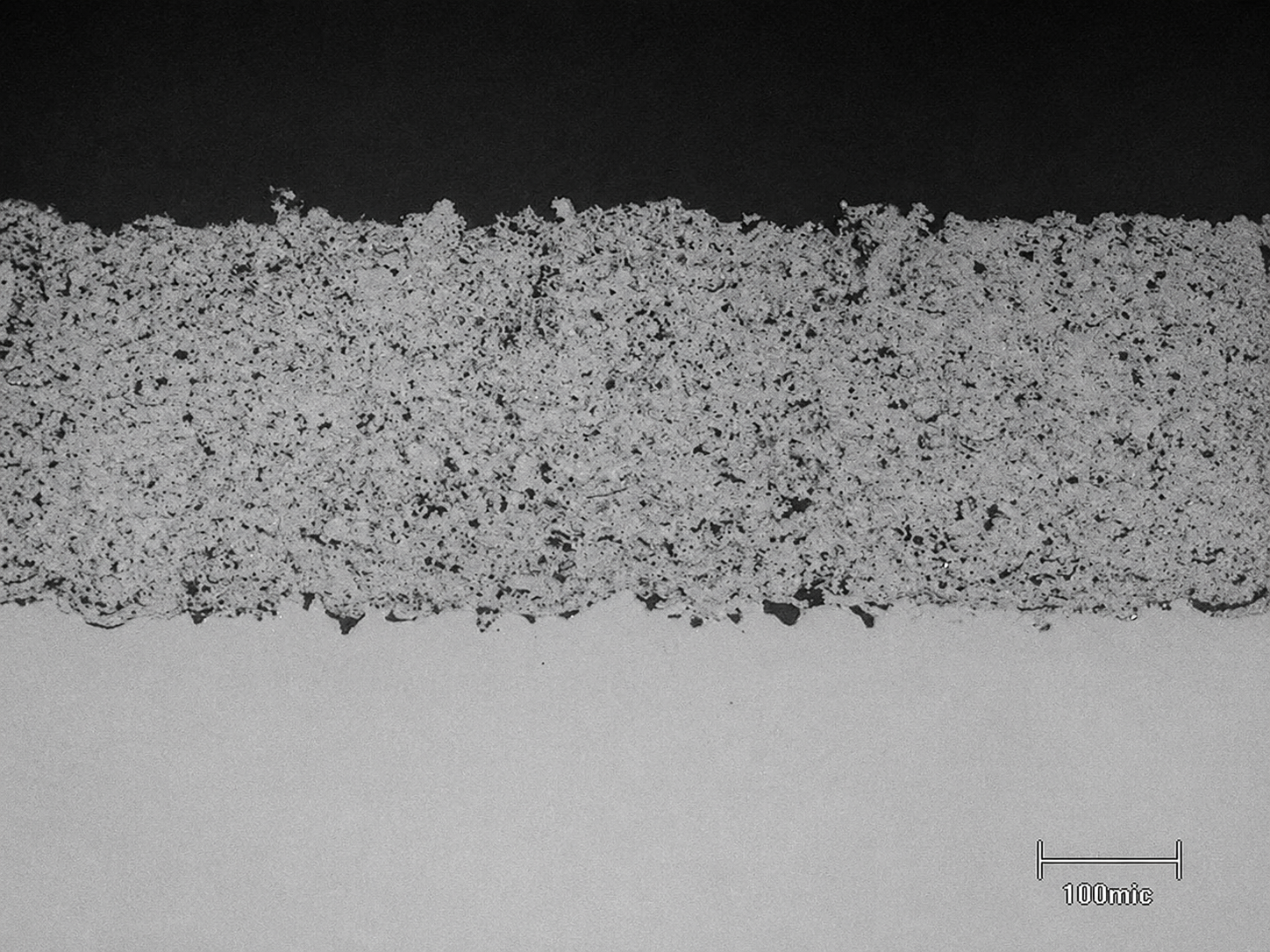

Chromium Carbide Microstructure
Chromium Oxide Wear & Insulation
Processing Capability Behind Our Plasma Coating Services
APT Coating combines material engineering, plasma spray booth capacity, trained technical operators and inspection support. Our plasma coating services are built around coating R&D, sample validation, controlled processing and practical support for industrial coating projects.
- Plasma spray processing capability
- Sample coating and process validation
- Inspection and evaluation support
- Support for industrial coating projects
Materials

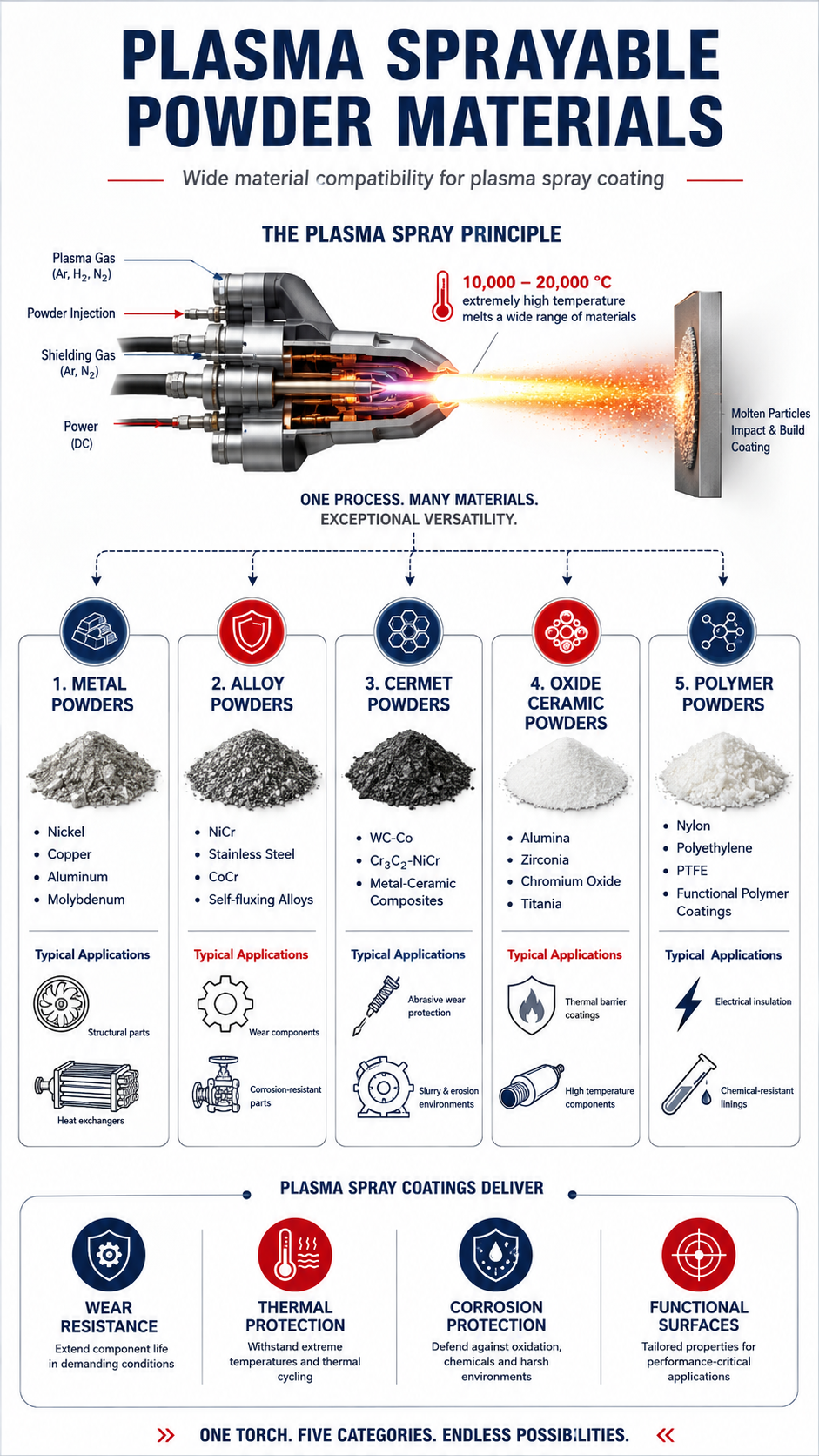

Plasma Spray Coating Materials
Material selection is one of the most important decisions in a plasma coating project. APT Coating helps evaluate the substrate material, operating temperature, wear mechanism, corrosion environment, required surface finish and inspection requirements before recommending a coating system.
| Material Type | Typical Materials | Common Purpose |
|---|---|---|
| Ceramic Coatings | Alumina, zirconia, chromium oxide | Wear resistance, electrical insulation, thermal protection and chemical stability |
| Thermal Barrier Coatings | YSZ and zirconia-based ceramics | Heat insulation for turbine, engine and high-temperature components |
| Oxide Coatings | Al2O3, Cr2O3, TiO2-based coatings | Wear resistance, dielectric protection, oxidation resistance and surface stability |
| Metallic Coatings | Nickel alloy, stainless steel, molybdenum | Surface restoration, dimensional build-up, repair and corrosion protection |
| Functional Coatings | Insulation, sealing, friction control and application-specific coating systems | Special surface functions based on operating conditions |
| Selected Wear-Resistant Coatings | Carbide or composite coatings when suitable | Wear and erosion resistance depending on process selection and coating requirement |
For dense carbide wear coatings, HVOF or D-Gun may be recommended depending on the part geometry, coating specification and working condition. APT Coating can help compare the most suitable thermal spray process for each application.
Not sure which plasma coating material is suitable?
Send us your substrate material, operating temperature, wear mode, corrosion environment and required surface function. APT Coating can help review the coating system.
Coating Types
Recommended Plasma Coating Types
APT Coating helps match each plasma spray coating system to the component function, service environment, finishing requirement and inspection standard.
Ceramic Plasma Coating
For wear resistance, electrical insulation, oxidation protection and high-temperature applications where ceramic surface properties are required.
View Ceramic CoatingThermal Barrier Coating
For components exposed to heat, flame, turbine gas flow, thermal cycling or high-temperature process conditions.
View Thermal Barrier CoatingElectrical Insulation Coating
For parts requiring dielectric surface protection, insulation performance or controlled electrical isolation.
View Insulation CoatingSurface Restoration Coating
For worn parts requiring dimensional recovery, surface rebuild, repair coating or functional refurbishment.
Discuss Repair CoatingProblem Solving
Surface Problems Solved by Plasma Spray Coating
Component Wear and Abrasion
Protects shafts, rollers, sleeves, guides, bearing seats and mechanical surfaces from friction, abrasion and service wear.
Heat Damage and Thermal Fatigue
Helps protect components exposed to high temperature, flame, thermal cycling or hot gas flow.
Oxidation and Corrosion
Improves surface resistance to oxidation, corrosive atmosphere and aggressive process environments when suitable materials are selected.
Electrical Insulation Failure
Ceramic plasma coatings can provide insulating surface layers for selected electrical and industrial applications.
Dimensional Wear and Repair
Restores worn dimensions, rebuilds damaged surfaces and extends component service life through controlled coating build-up.
Special Surface Function
Modifies surface properties such as friction, roughness, heat transfer, sealing compatibility or electrical behavior according to the application.
Applications
Typical Plasma Coating Applications
Aerospace and Gas Turbine
Purpose: thermal barrier coating, oxidation resistance and high-temperature protection.
View ApplicationOil and Gas
Purpose: erosion, corrosion and wear protection for demanding service conditions.
View ApplicationMechanical Manufacturing
Purpose: surface restoration, wear resistance and dimensional repair.
View ApplicationAutomotive and Industrial Equipment
Purpose: surface protection, repair coating and functional coating performance.
View ApplicationRepair and Maintenance
Purpose: coating refurbishment and service-life extension for industrial components.
View ApplicationHave a Similar Component or Industry Application?
Send us your part photo, drawing or working condition. APT Coating can review coating purpose, material selection and inspection requirements.
Performance Benefits
Performance Benefits of Plasma Spray Coatings
Properly specified plasma spray coating can help reduce abrasion, sliding wear and surface damage on selected industrial components.
Zirconia-based coatings can help reduce heat transfer and protect surfaces exposed to high-temperature service conditions.
Depending on material selection, plasma spray coatings can improve surface resistance in oxidizing or corrosive environments.
Ceramic coating systems can provide dielectric surface protection when the coating material, thickness and finishing are properly specified.
Plasma spray can support dimensional recovery and repair coating work for worn or damaged surfaces when part geometry allows.
Coating thickness, porosity, microstructure and surface roughness can be adjusted within project requirements and process capability.
Workflow
APT Coating Plasma Coating Process
Application Review
Review the drawing, substrate, working environment, failure mode, temperature and required coating function.
Coating Material Selection
Select coating material, thickness, surface finish, inspection needs and process route for the application.
Cleaning, Masking and Grit Blasting
Clean the component, mask non-coated areas and grit blast the surface to support coating adhesion.
Plasma Spray Coating
Apply the coating using controlled plasma spray parameters, powder feed conditions and thickness control.
Sealing, Grinding and Finishing
Apply sealing, grinding, polishing, machining or other finishing work when required by the final part function.
Inspection and Delivery
Inspect coating quality, dimensions and surface condition before delivery or further testing.
What to Send for a Plasma Coating Quotation
- Component drawing or photos
- Base material / substrate
- Working temperature
- Wear, corrosion or failure problem
- Required coating function
- Target coating thickness
- Surface finish requirement
- Quantity and delivery expectation
- Inspection or report requirement
Quality Control
Coating Quality Control and Inspection Support
APT Coating can support coating inspection based on coating type, part function, customer specification and batch production requirements. For coating development projects, sample coating, cross-section review and performance evaluation can be arranged before production.
Inspection planning can be aligned with the coating system, surface preparation method, final finishing requirement and component function.
Inspection Checklist
- Coating thickness measurement
- Surface roughness inspection
- Hardness testing
- Bond strength evaluation
- Porosity and microstructure analysis
- Visual inspection
- Dimensional inspection
- Cross-section sample review
- Adhesion or bond quality review
- Coating defect analysis
Need Sample Coating or Cross-Section Review?
For new coating development projects, APT Coating can support sample coating, coating section review, thickness measurement and basic performance evaluation before batch production.
Why APT Coating
Why Choose APT Coating?
APT Coating focuses on application-oriented coating solutions, not only coating deposition.
Coating Designed Around Working Conditions
We review substrate material, operating temperature, wear mode, corrosion environment and expected surface function before recommending the coating system.
Support for Prototypes, Repair Parts and Batch Production
APT Coating can support sample coating, single-part repair, small batches and selected production coating projects.
Ceramic and Functional Coating Capability
We provide plasma coating options for ceramic surfaces, thermal barrier protection, electrical insulation and selected functional applications.
Inspection and Sample Evaluation
Coating quality can be evaluated through thickness, hardness, roughness, porosity, microstructure and cross-section review when required.
Technical Training for Engineers
APT Coating can provide coating knowledge training for engineers, production teams and technical users who need to understand coating selection and inspection.
From Coating Design to Final Inspection
APT Coating supports the full service path from working-condition review and coating design to plasma spray processing, finishing and inspection.
Process Comparison
Plasma Coating Compared with Other Thermal Spray Processes
Plasma spray is not always the only answer. The best thermal spray process depends on coating material, density requirement, component geometry and working condition.
| Process | Best For | Typical Coating |
|---|---|---|
| Plasma Spray | Ceramic coatings, thermal barrier coatings, electrical insulation and high-melting-point materials | Alumina, zirconia, chromium oxide, YSZ and selected metal-ceramic coatings |
| HVOF | Dense wear and corrosion resistant coatings with low porosity | Tungsten carbide, chromium carbide and nickel alloy coatings |
| Arc Spray | Large-area anti-corrosion coating and dimensional build-up | Zinc, aluminum, stainless steel and metal wire coatings |
| D-Gun Coating | High-density wear-resistant coatings for demanding components | Carbide and selected high-performance wear coatings |
The best coating process depends on material, component geometry, required coating density, operating temperature, wear mode, corrosion environment and final surface finish. APT Coating can help review the working conditions and recommend the most suitable process.
Not Sure Whether to Choose Plasma, HVOF, Arc Spray or D-Gun?
Different thermal spray processes produce different coating density, material compatibility, surface finish and performance characteristics. Send your part information and APT Coating can help recommend the most suitable process.
Internal Resources
Related Coating Services and Resources
Explore related thermal spray coating services, inspection support and engineering training resources.
FAQ
Plasma Coating Services FAQ
What is plasma spray coating used for?
It applies protective or functional coatings that can help improve wear resistance, heat protection, oxidation resistance, electrical insulation and surface restoration.
What materials can be applied by plasma spray coating?
Plasma spray can apply powder-based ceramics, oxides, selected metals, alloys and functional coating systems such as alumina, zirconia, chromium oxide and YSZ.
Is plasma coating suitable for ceramic coatings?
Yes. Plasma spray is especially suitable for ceramic coatings because the high-temperature plasma jet can process high-melting-point ceramic materials such as alumina, zirconia and chromium oxide.
Can plasma coating provide thermal barrier protection?
Yes. Zirconia-based and YSZ thermal barrier coatings can help protect parts exposed to high temperature, flame, hot gas flow or thermal cycling.
What is the difference between plasma coating and HVOF coating?
Plasma spray is often selected for ceramic coatings, thermal barrier coatings, insulation coatings and high-melting-point materials. HVOF is often selected for dense carbide and metal alloy coatings where low porosity, wear resistance and corrosion resistance are important.
Can plasma coating be used for worn part repair?
Yes. It can support surface restoration, dimensional build-up and functional repair when material, thickness, finishing and inspection are properly specified.
What information should I provide for a plasma coating quotation?
Please provide the component drawing, substrate material, working environment, operating temperature, wear or corrosion problem, required coating function, target surface finish, quantity and inspection requirements if available.
Can APT Coating provide coating inspection and technical support?
Yes. APT Coating can support coating inspection, sample evaluation, coating selection, coating development, technical consultation and engineer training.
Need a Plasma Coating Solution for Your Components?
Send us your component drawing, material, working environment, failure problem, coating requirement or inspection standard. APT Coating engineers can review your application and recommend a suitable plasma coating solution.
